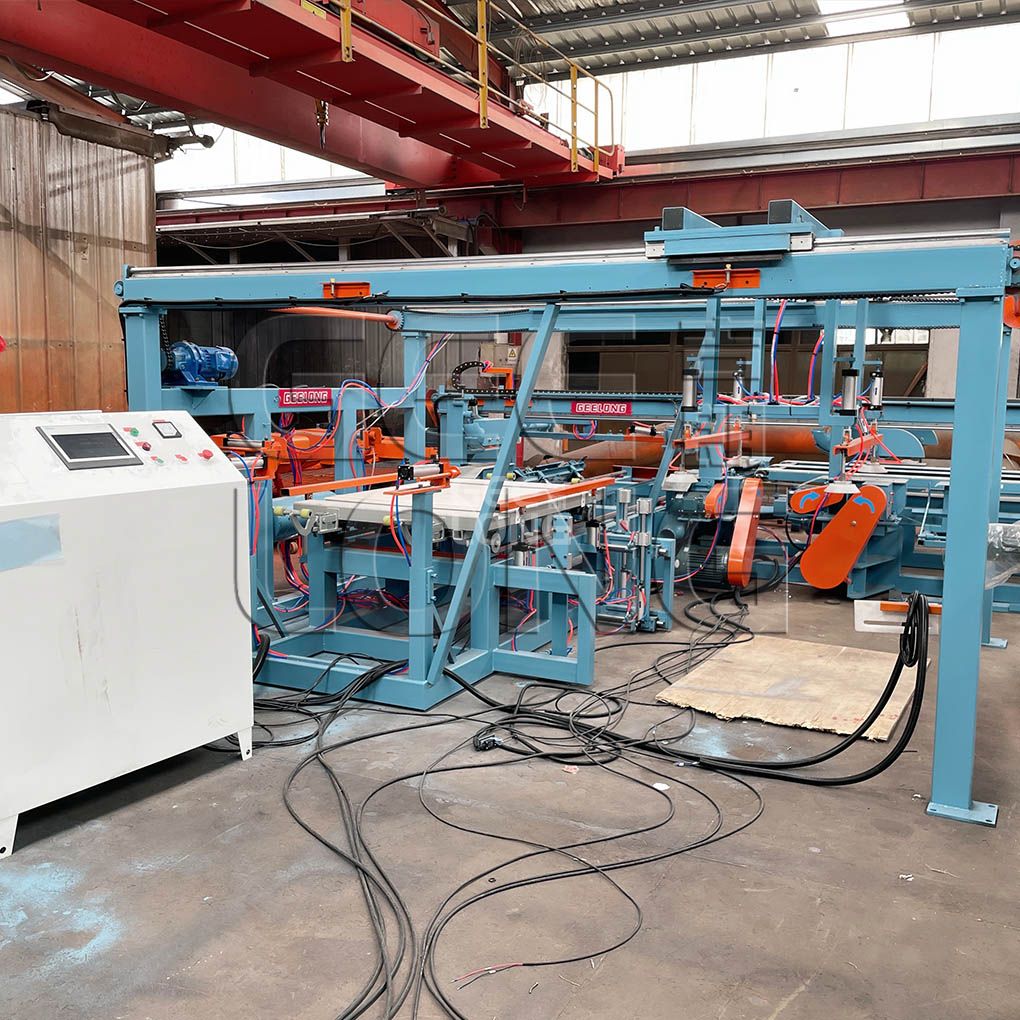

this is 5ft full automatic birch plywood double sizer. It mainly produces 5*5ft plywood.

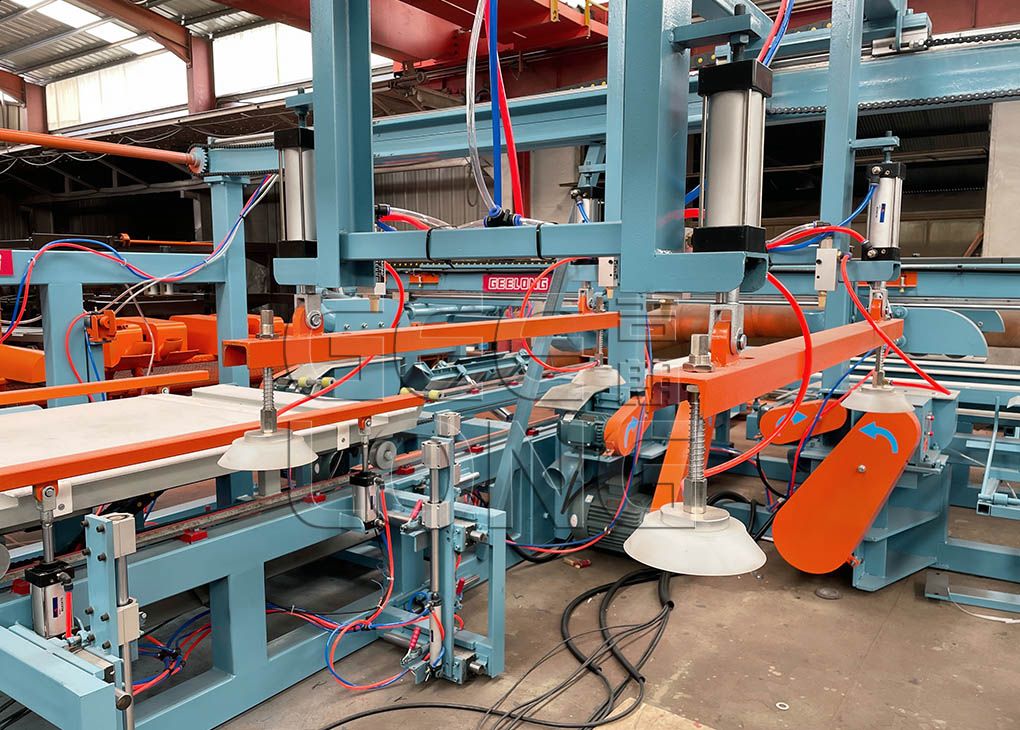

It is popular in Russia market.the plywood feeding use automatic vacuum suction cup system. The whole running process is automatic. No need any operator.GEELONG also produce 4*8ft ,36-48ft adjustable plywood saw cutting machine.
| Cut length: | 1525mm |
| cutting width: | 1525mm |
| Cutting thickness: | 10-60mm |
| Saw size: | Φ180mm and Φ305mm, inner diameter 25.4mm |
| vertical cutting speed: | 30m-60m/min |
| Horizontal cutting speed: | 30m-60m/min |
| Cutting engine: | 4*11kw |
| Conveyor motor: | 2*1.5kw |
| automatic stacker: | 3kW |
| Dust collector: | 4kW |
| Ability: | 8-12 pieces per minute |
| Work style: | infrared guided |
| Electrical part brand: | mitsubishi parts |
| Working methods: | Fully Automatic / NO WORKER REQUIRED |
| table riser: | 1 set |
| machine weight: | 7.5 tons |
