Plywood Edge Cutting Saw

Rumah >> Produk >> Lini produksi kayu lapis >> Plywood Edge Cutting Saw

  • China GEELONG roller type plywood edge cutting saw machine

  • China GEELONG roller type plywood edge cutting saw machine

  • China GEELONG roller type plywood edge cutting saw machine

  • China GEELONG roller type plywood edge cutting saw machine

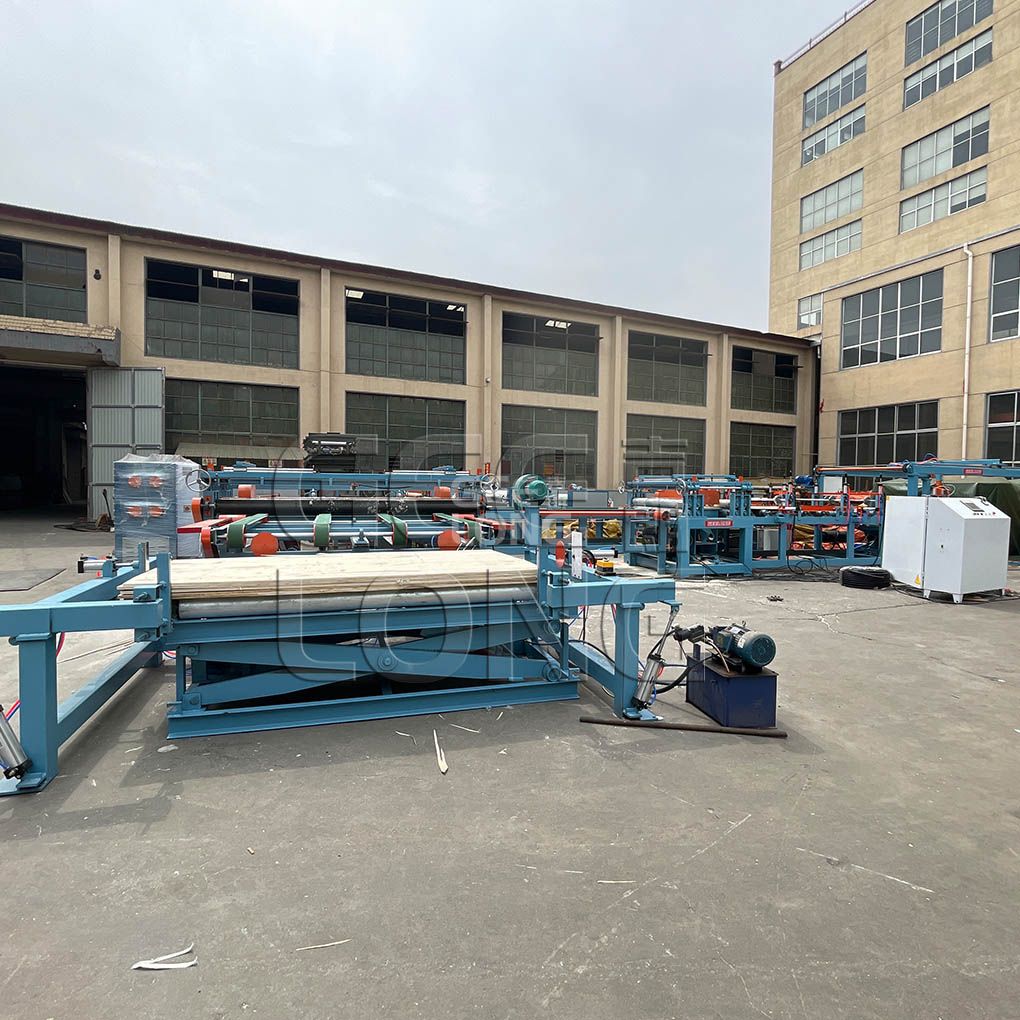

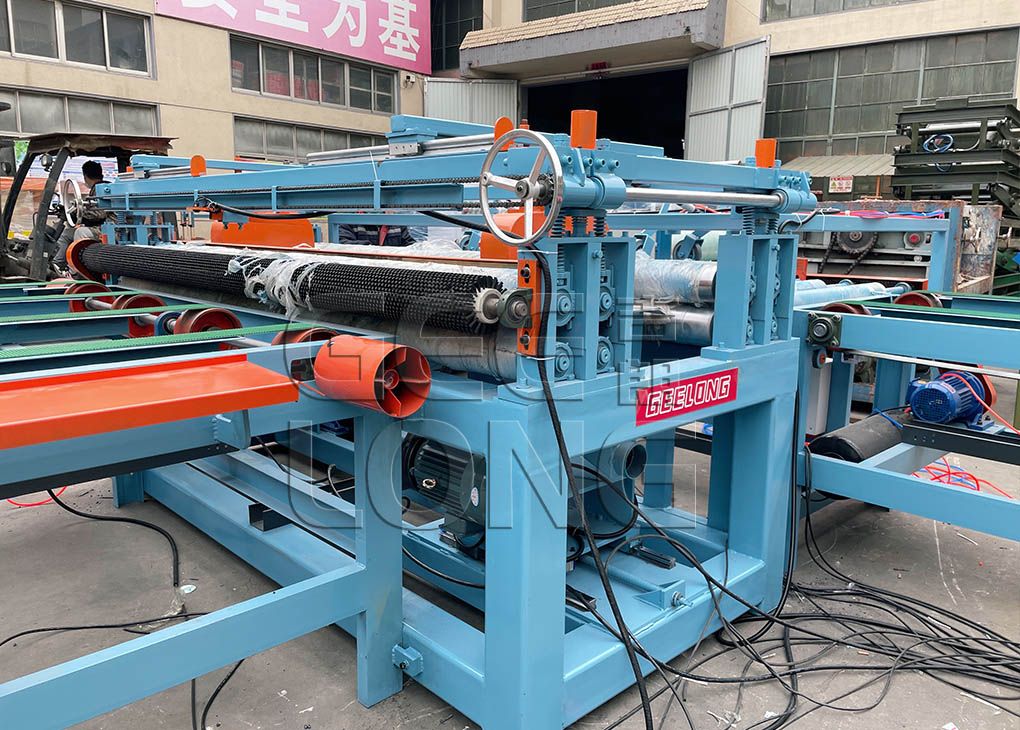

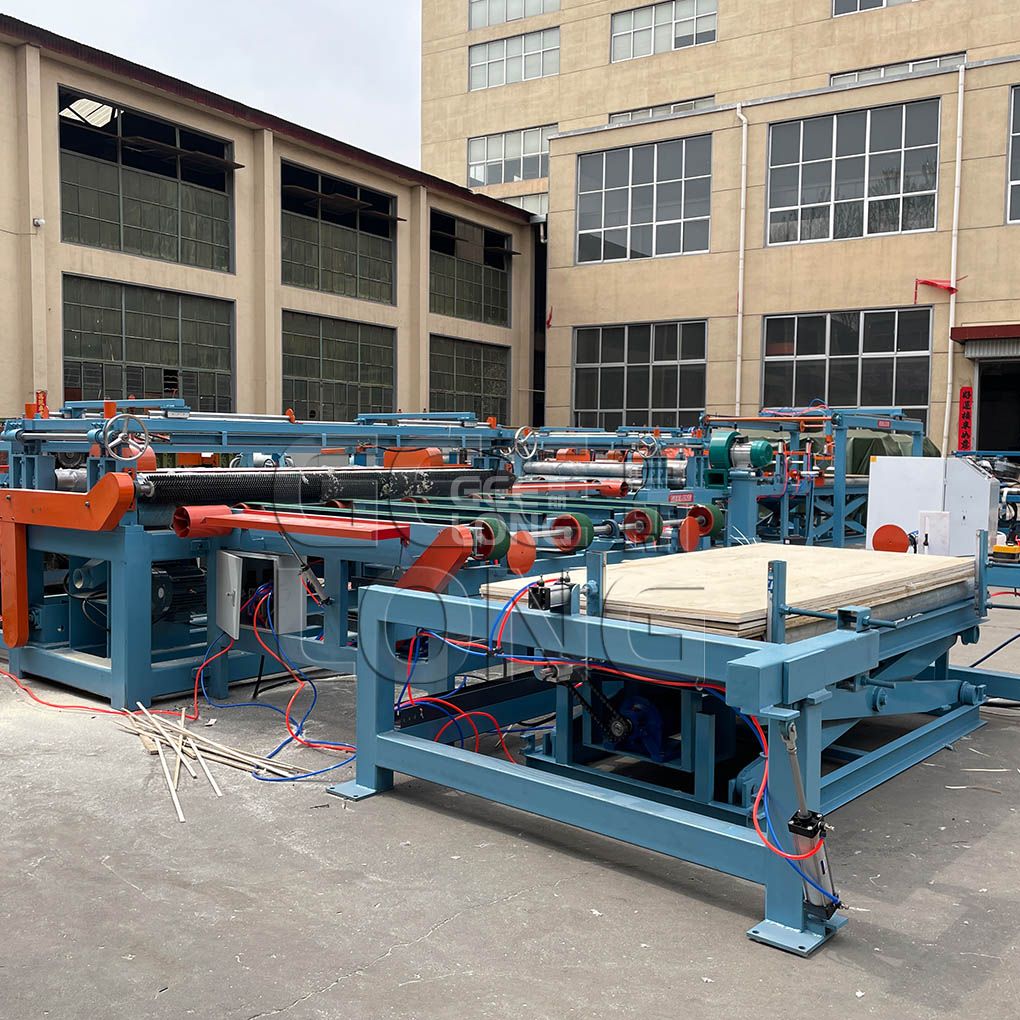

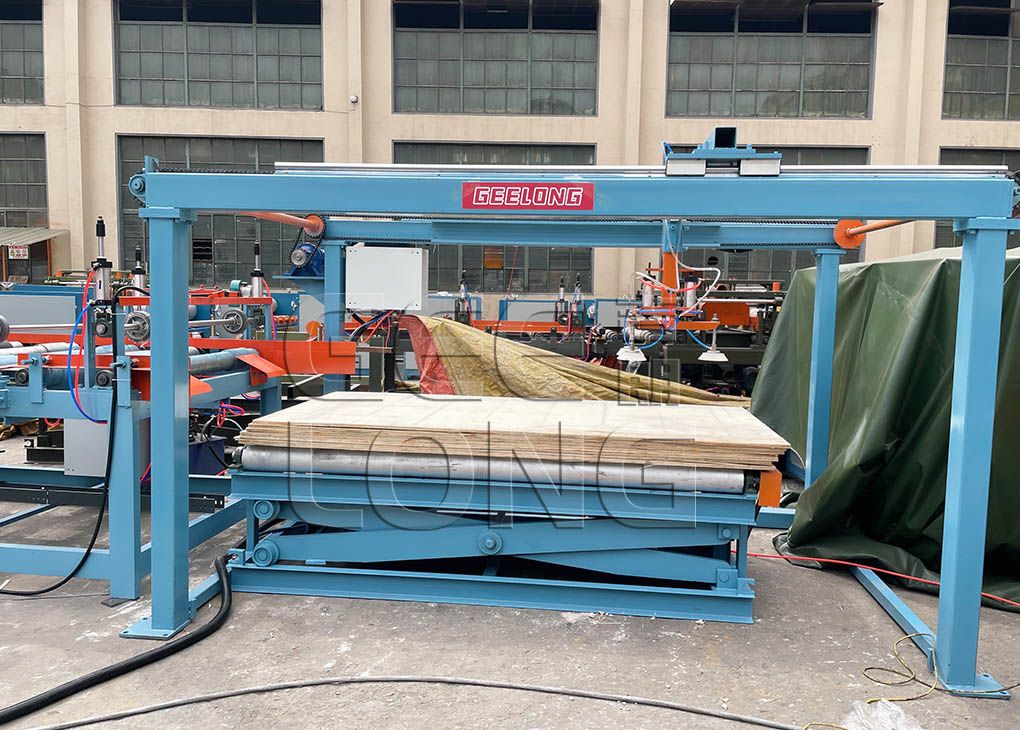

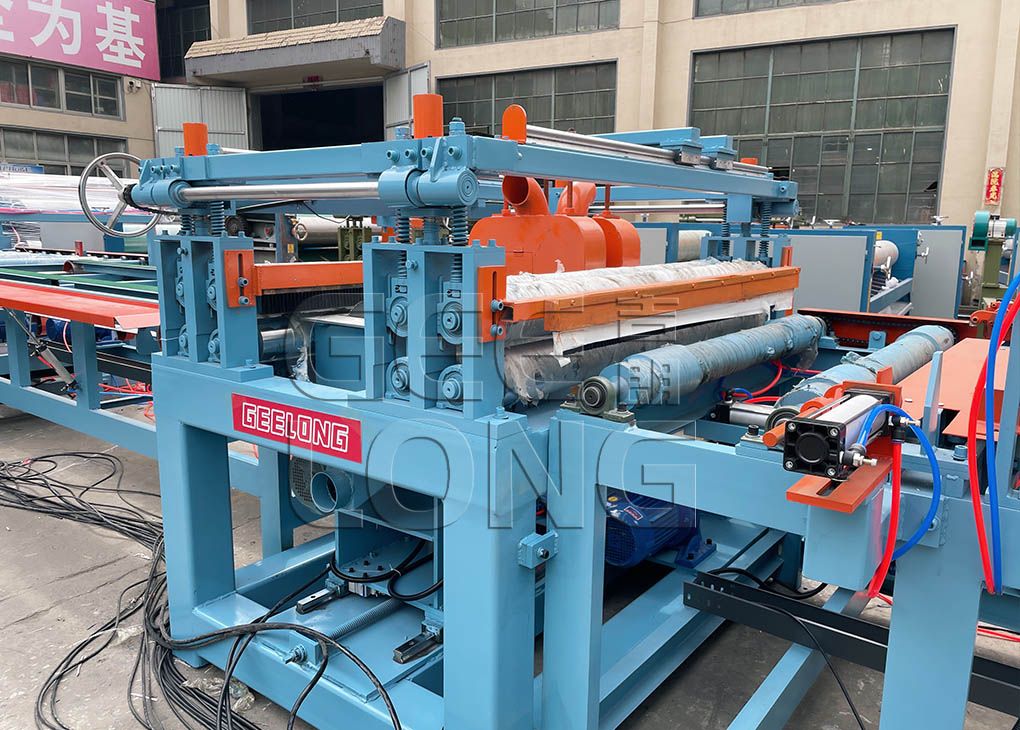

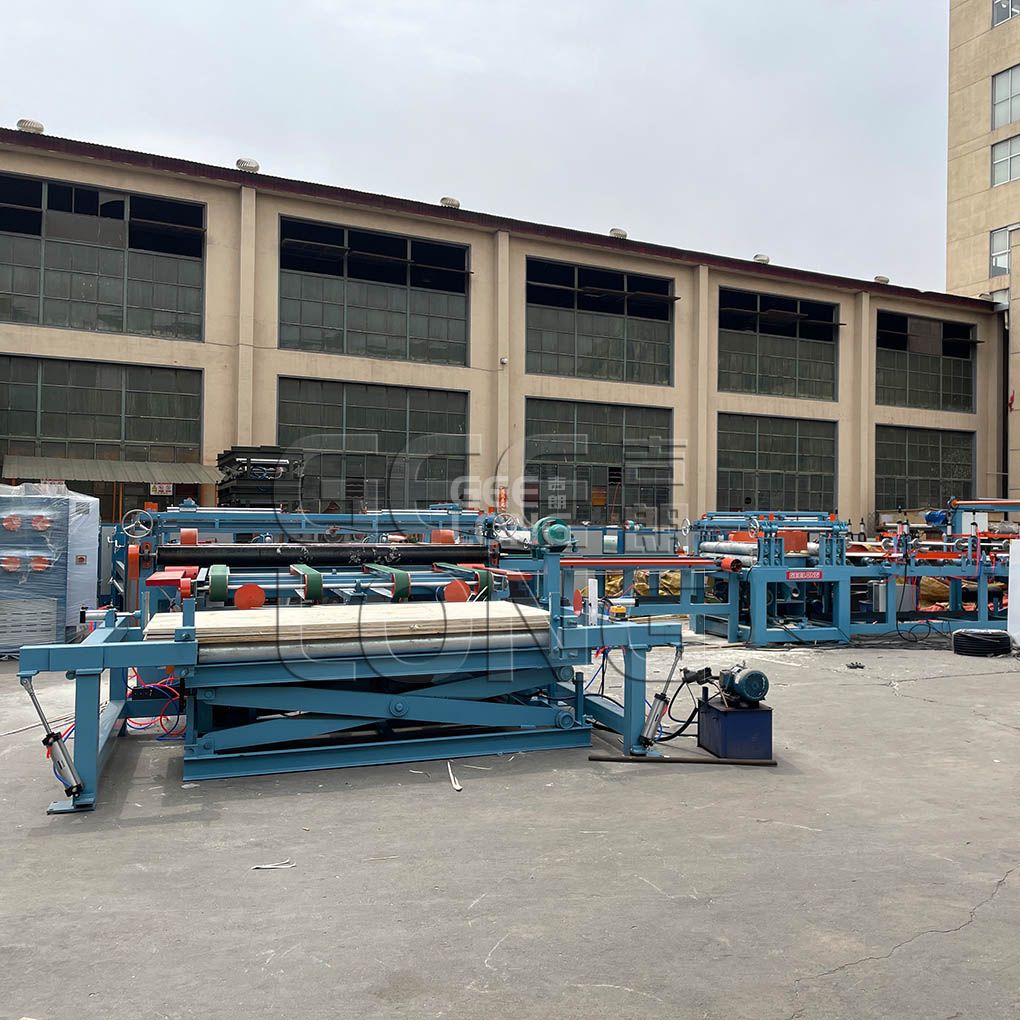

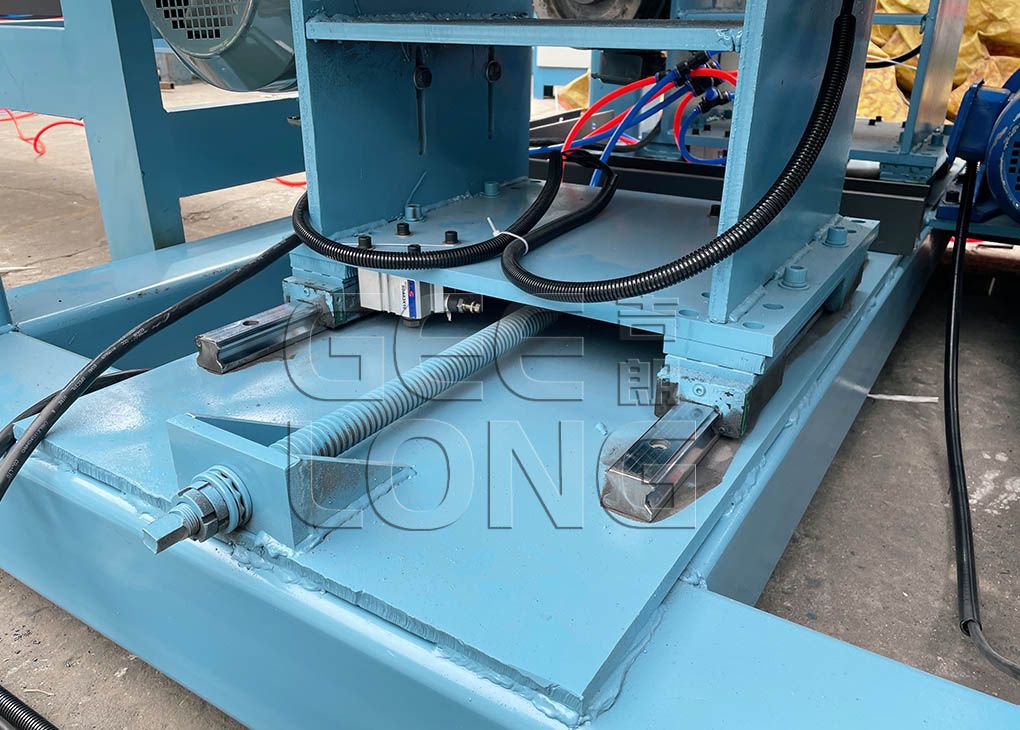

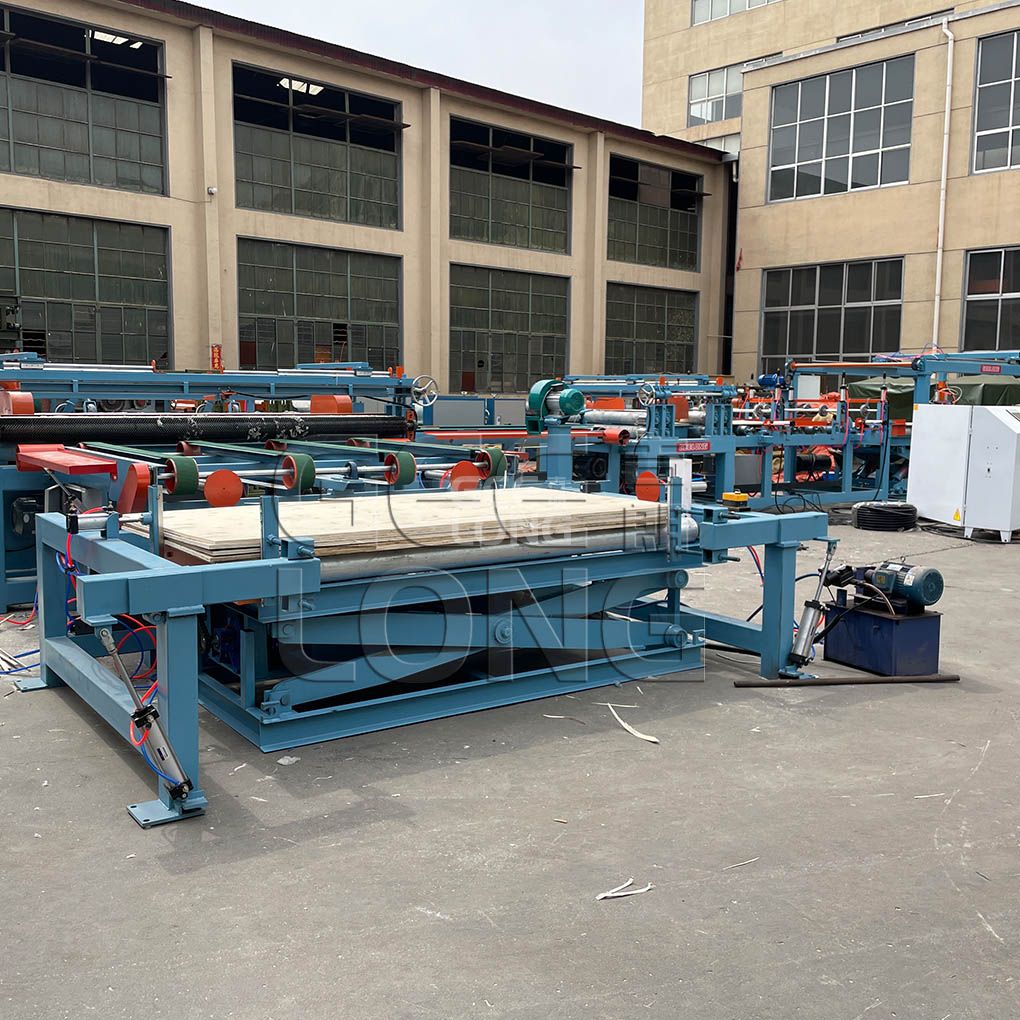

China GEELONG roller type plywood edge cutting saw machine

Machine model with saw edge:JBG48-510
Dimensions:equipment11000mm*largura5100mm*altura1200mm
Processing range:1250mm-1500mm and 2400mm-3100mm
Model with saw blade:Φ305*25.4*120Z*3.2mm
Feed rate:0-30 m/min
Line speed:5315m/s
Rotational speed :5550
Machinable Thickness:3-60 mm
PLC system:Siemens brand
Equipped with power:42kW (7.5kW*4 pcs, 1.5kW*4 pcs, 3kW*2 pcs)
Roll size: Longitudinal roll:φ180*1760mm
Side roller:φ180*3255mm
Pasta:7T

China GEELONG roller type plywood edge cutting saw machine

China GEELONG roller type plywood edge cutting saw machine

China GEELONG roller type plywood edge cutting saw machine

China GEELONG roller type plywood edge cutting saw machine
